How To Set Up My PetSafe® ScoopFree® Crystal Pro Self-Cleaning Litter Box

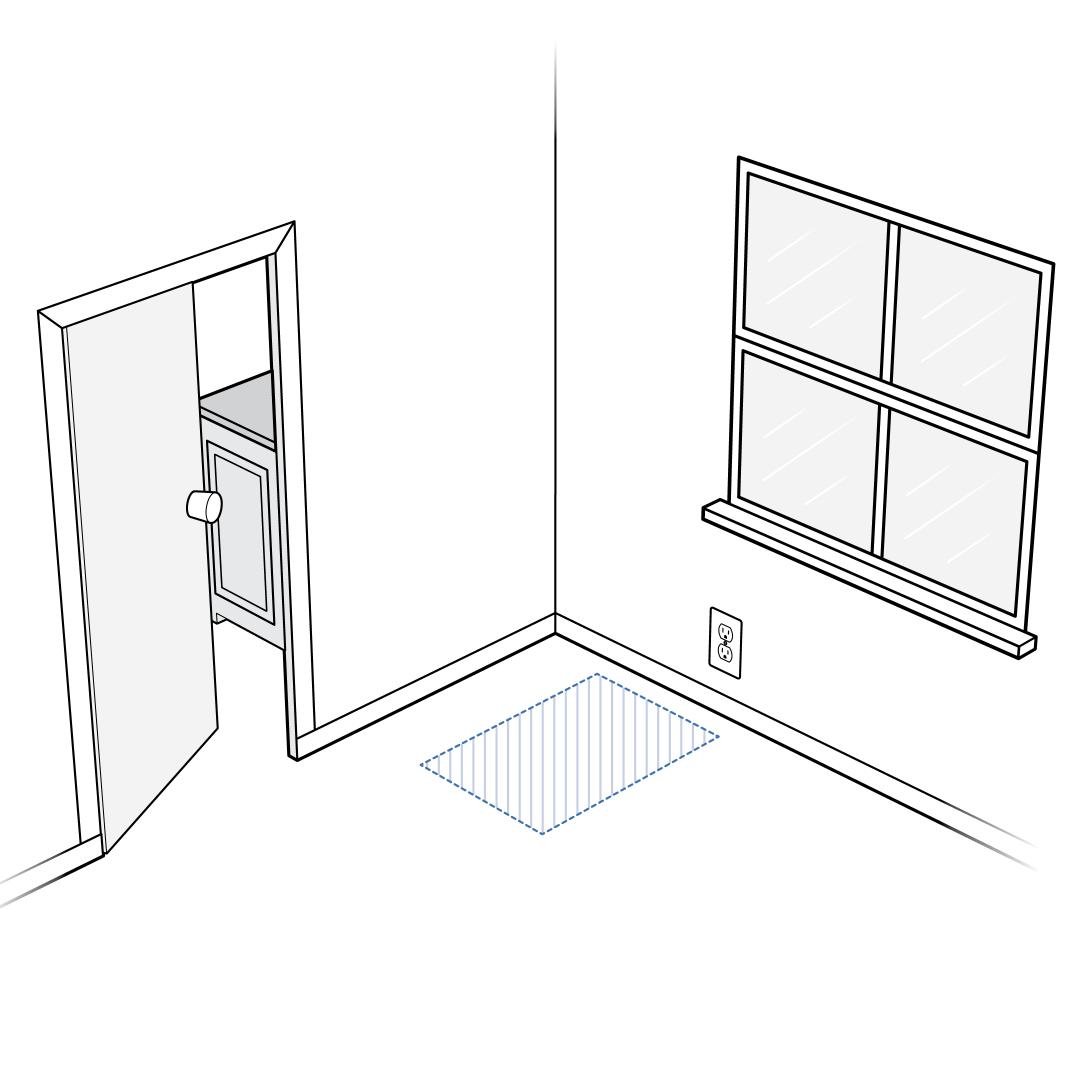

Select a dry area with good airflow to maximize tray life and odor control near a standard wall outlet. Do not place in a high-humidity area such as a bathroom or laundry room.

Place the waste trap cover by inserting the posts on the underside of the waste trap cover into the notches inside the front of the litter box frame.

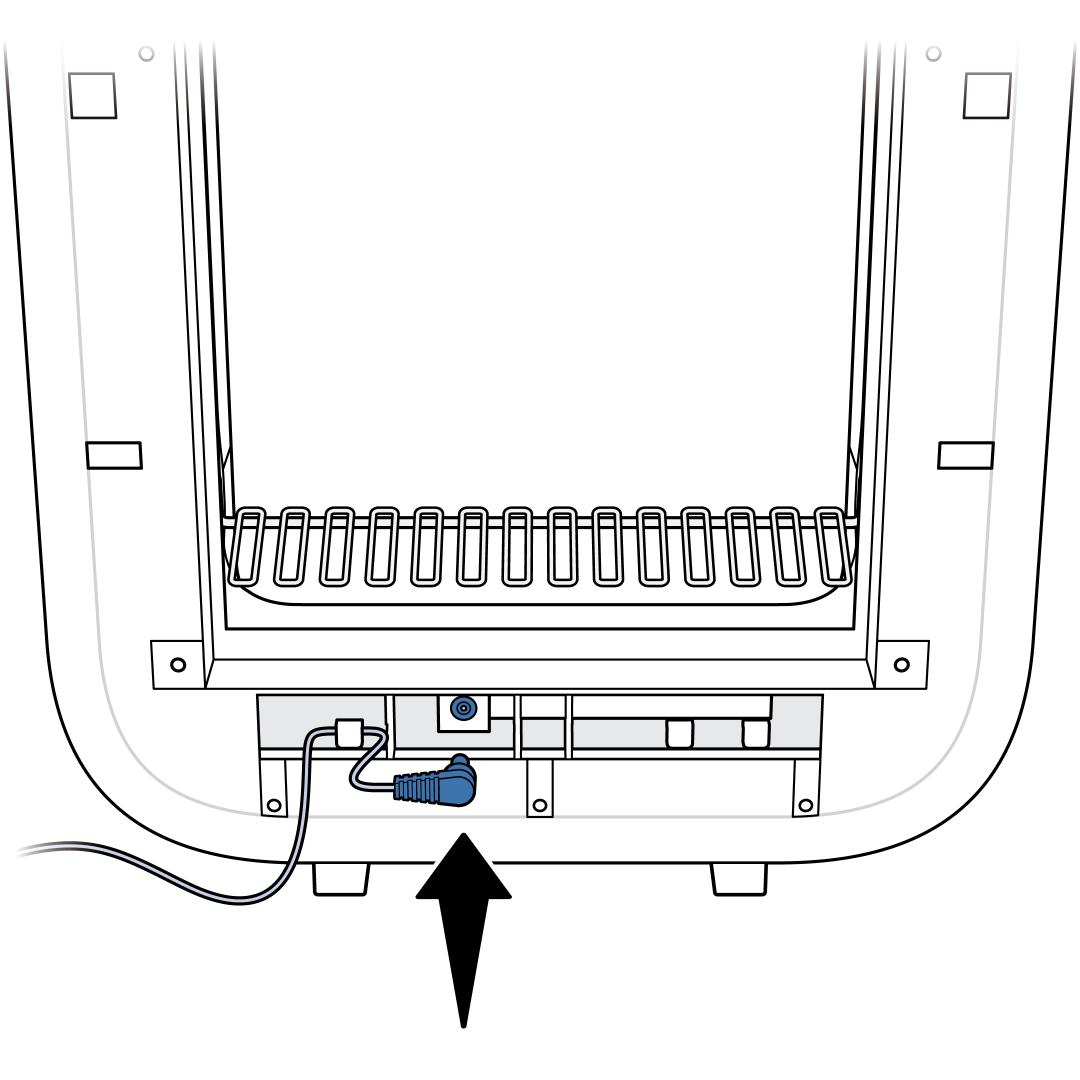

Insert the small end of the power adaptor into the socket on the bottom of the litter box frame. Slide the power adaptor cable under the clips on either side of the socket to secure it.

Do not plug the other end of the power adaptor into the wall outlet yet.

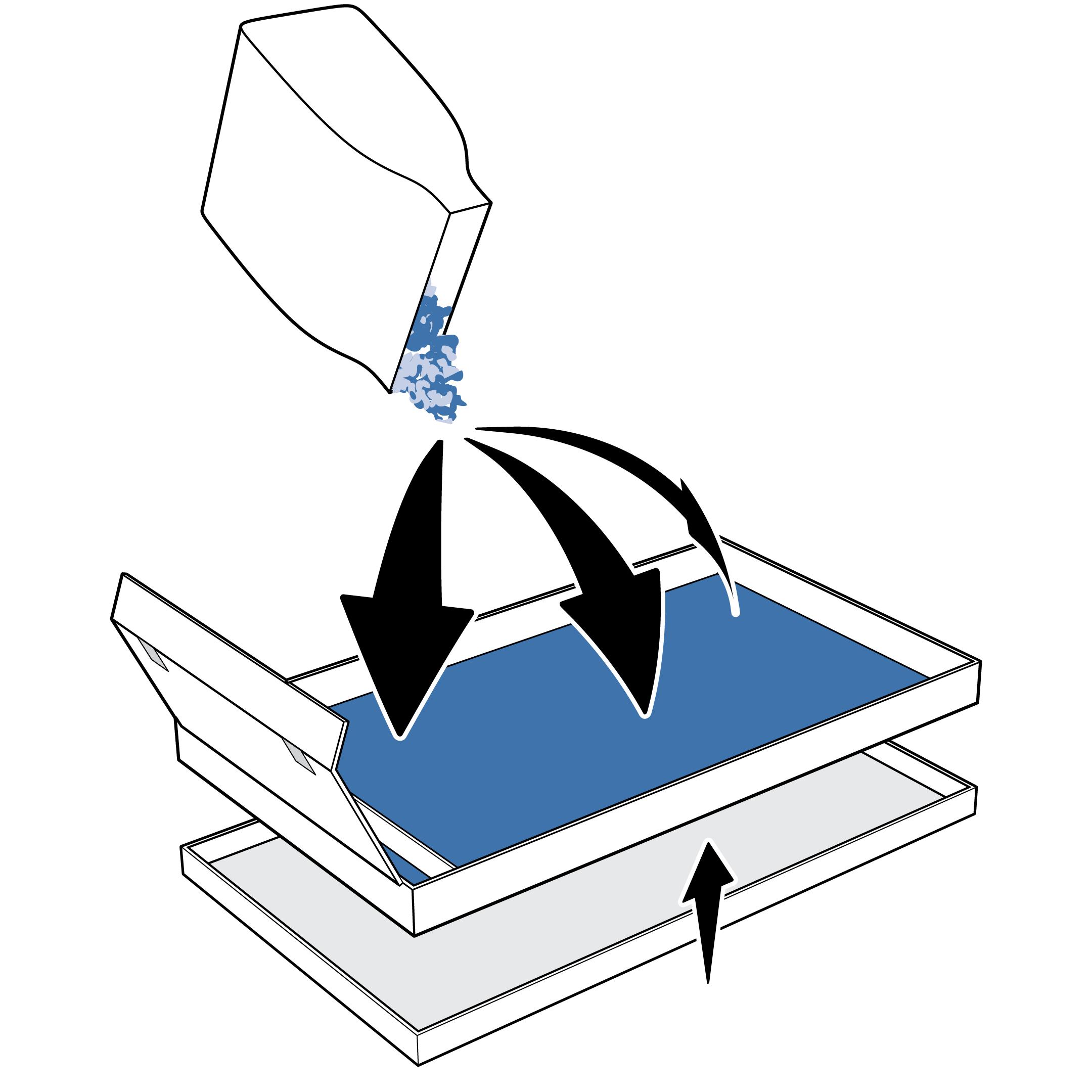

Pour litter into the litter tray. Spread it evenly. Sprinkle one handful of the litter under the waste trap. Place the lid under the litter tray. You’ll use this later when you change the litter tray.

Using the handle, lift the front of the litter box frame and place the litter tray under it. Make sure the waste trap on the tray is under the waste trap cover on the litter box frame. Lower the frame. You’ll hear a click as the magnets on the waste trap cover connect with the magnets on the litter tray.

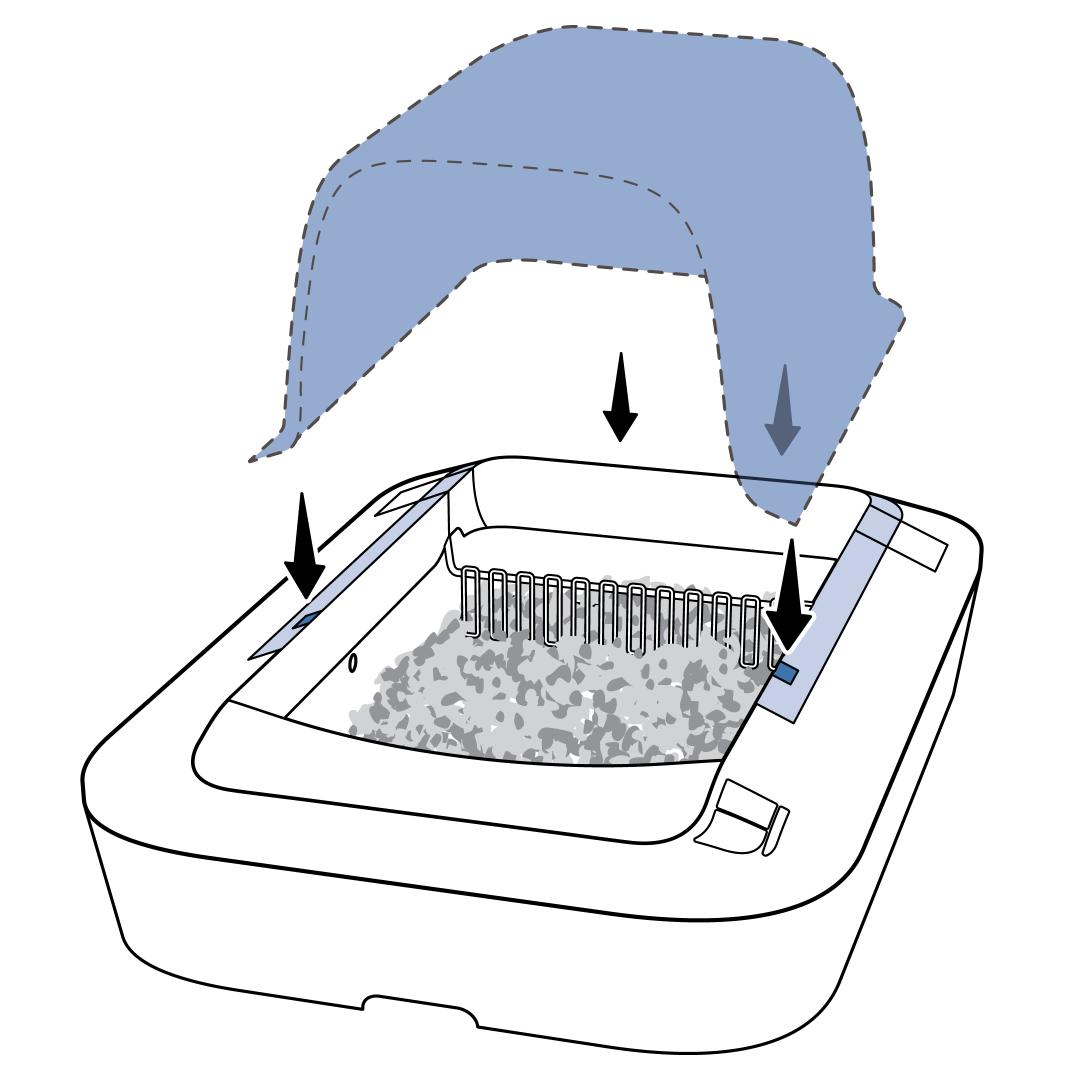

Line up tabs at the bottom of the privacy hood to the notches on the top edge of the litter box. If your cat has not used a covered litter box before, it may help to leave the litter box uncovered until your cat is comfortable using it.

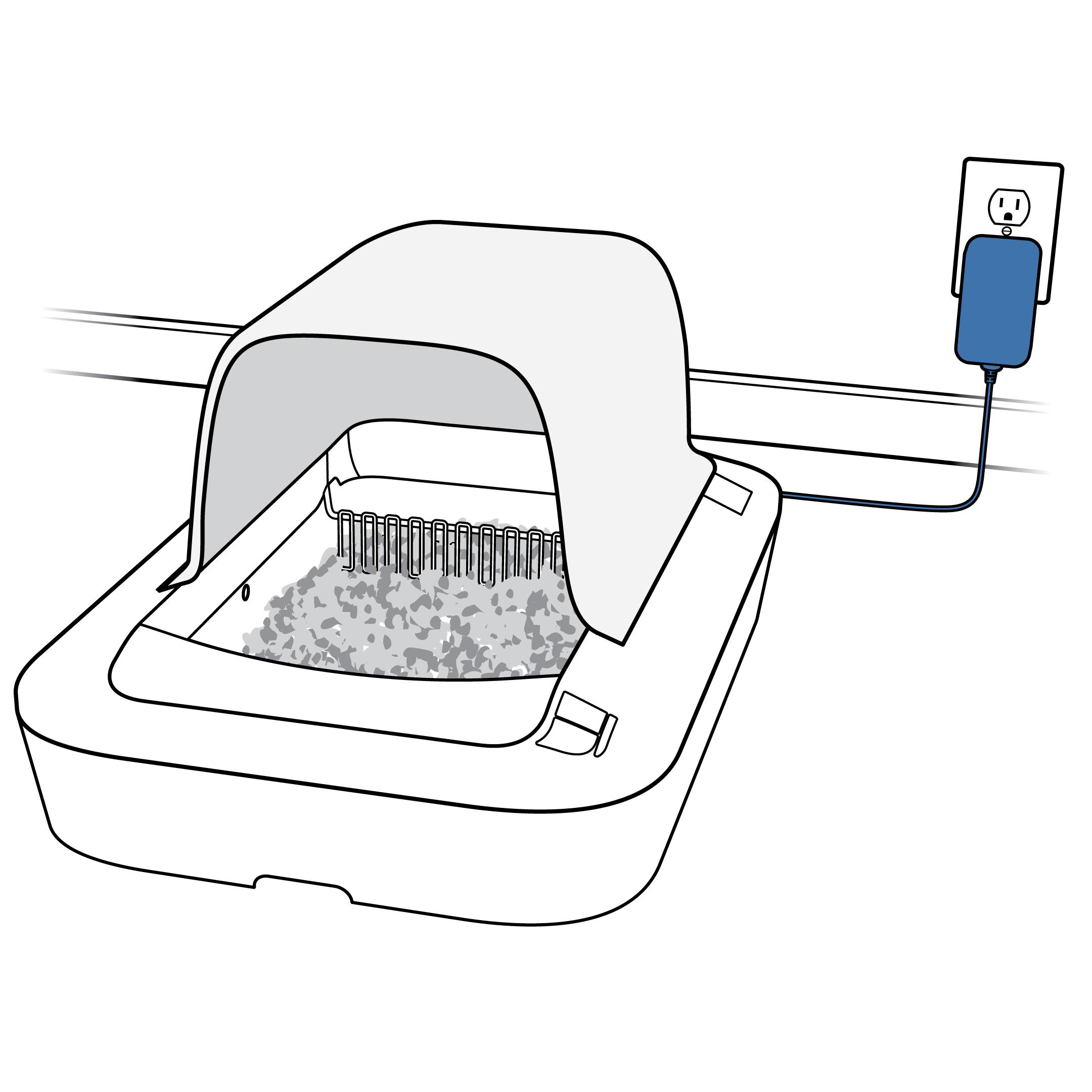

Plug the power adaptor into a wall outlet.

The litter box powers on, and the rake moves to the home position.
